Dry screeds with Fiber wood shop

Fiber wood shop dry screeds solutions

Betonwood provides building solutions for flooring systems with stratigraphies which include our thermal and acoustic insulation with Fibertherm fiber wood and our cement bonded particle boards: traditional dry screeds, insulated floors, radiant and/or elevated floors.

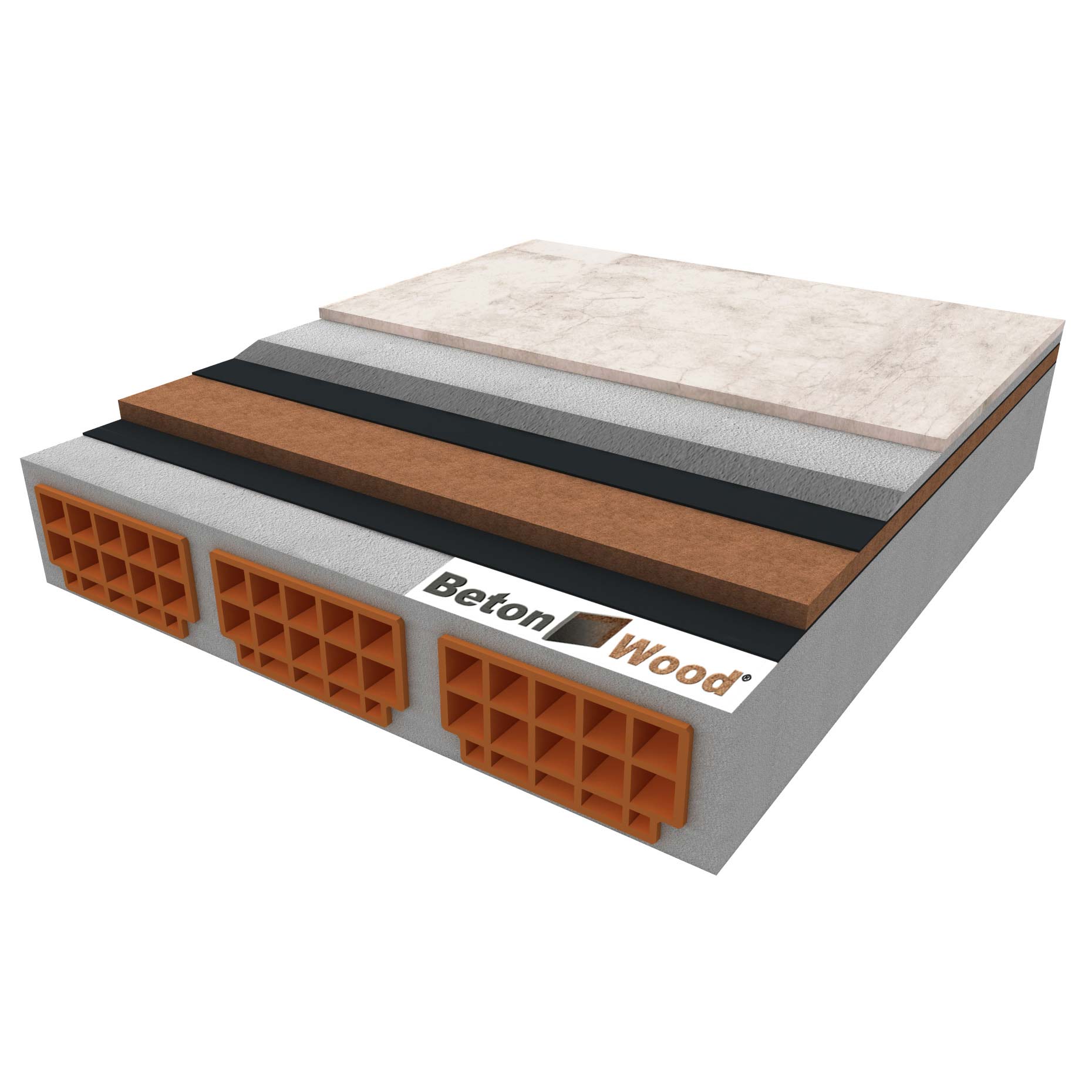

Dry screed with fiber wood Base, BetonWood and concrete casting
3. Dry screed with fiber wood Base, BetonWood and concrete casting

Screed and attic complete system with a single layer of FiberTherm Base fiber wood with high density of 250kg/m³ installed between two vapor barrier type multi UDB above and below the fiber wood panel, a concrete casting above therm and one cement bonded particle boards layer with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. The walkable dry screed system rests on a concrete structure.


  Download the Data sheet
  Download the Specification

See photo gallery 53

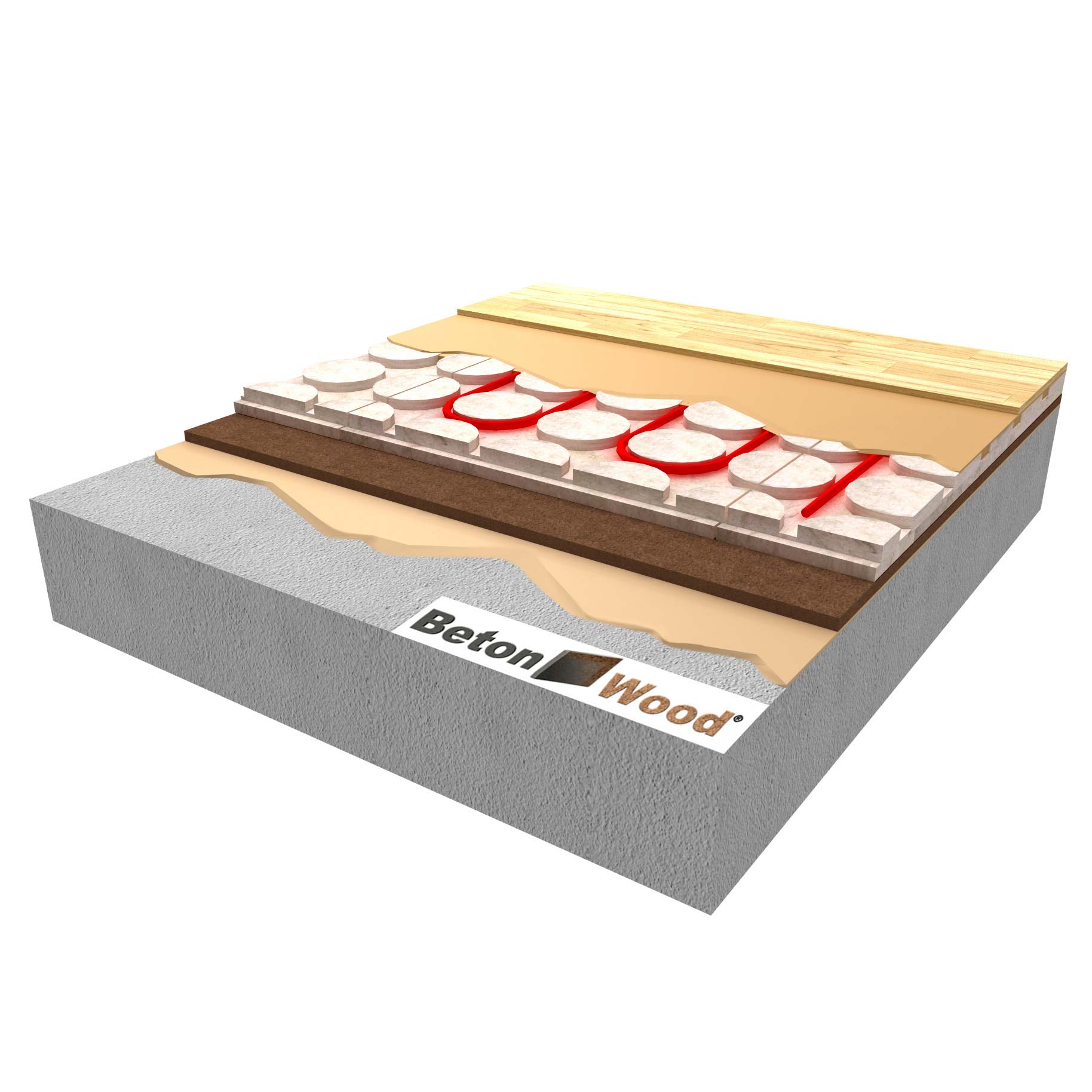

Radiant floor with fiber wood and cement bonded particle board
9. Radiant floor with fiber wood and cement bonded particle board

Radiant floor complete system with thermal insulation. The screed is composed initially of a self-leveling compound on the substrate base, successively by a layer of high compression resistance fiber wood panels FiberTherm Base with high density 250kg/m³ and finally the BetonRadiant radiant system in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.


  Download the Data sheet
  Download the Specification

See photo gallery 44

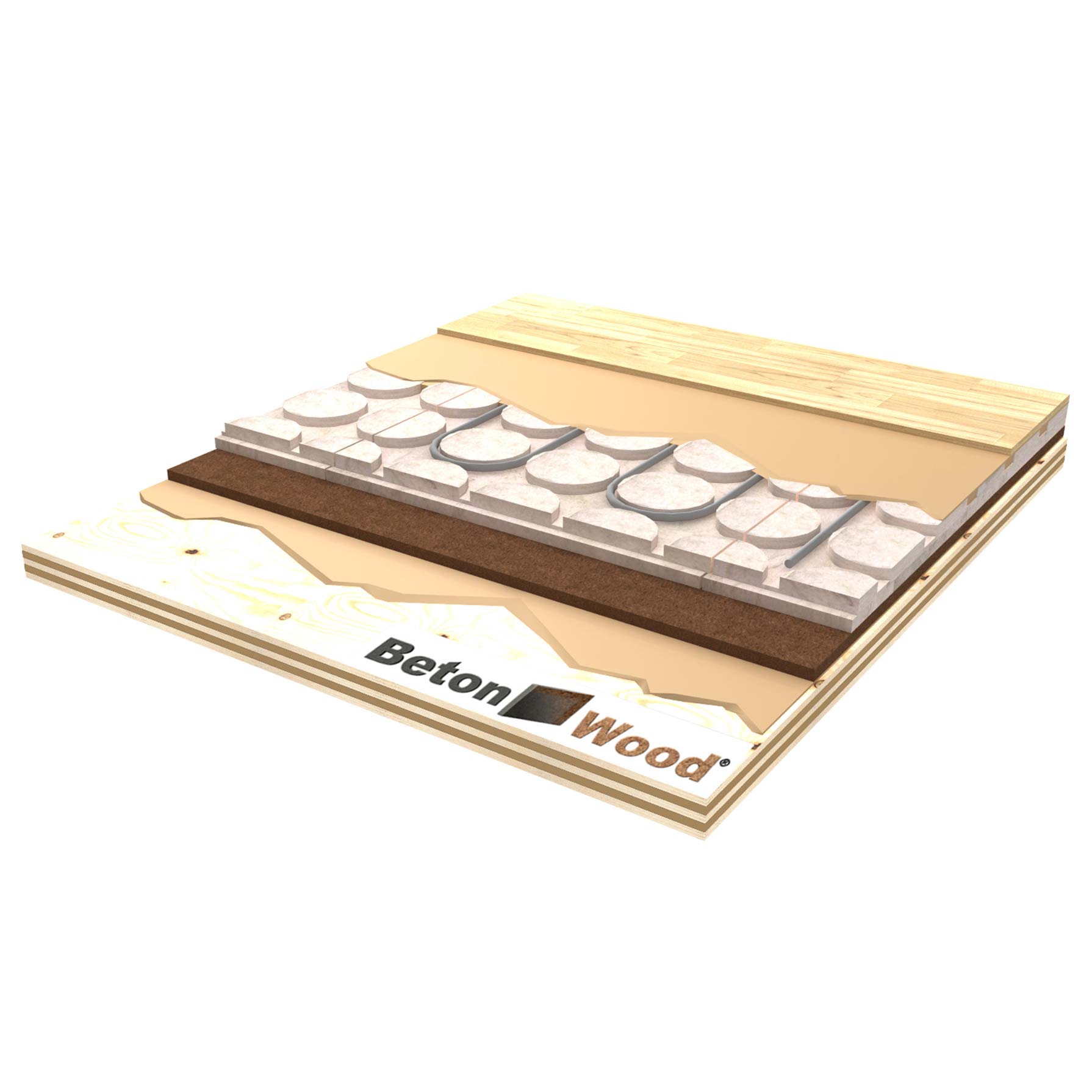

Radiant floor with fiber wood and BetonWood on X-lam
9a. Radiant floor with fiber wood and BetonWood on x-lam

Radiant floor complete system with thermal insulation on x-lam structure. The screed is composed initially of a self-leveling compound on the substrate base, successively by a layer of high compression resistance fiber wood panels FiberTherm Base with high density 250kg/m³ and finally the BetonRadiant radiant system in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.


  Download the Data sheet
  Download the Specification

See photo gallery 44

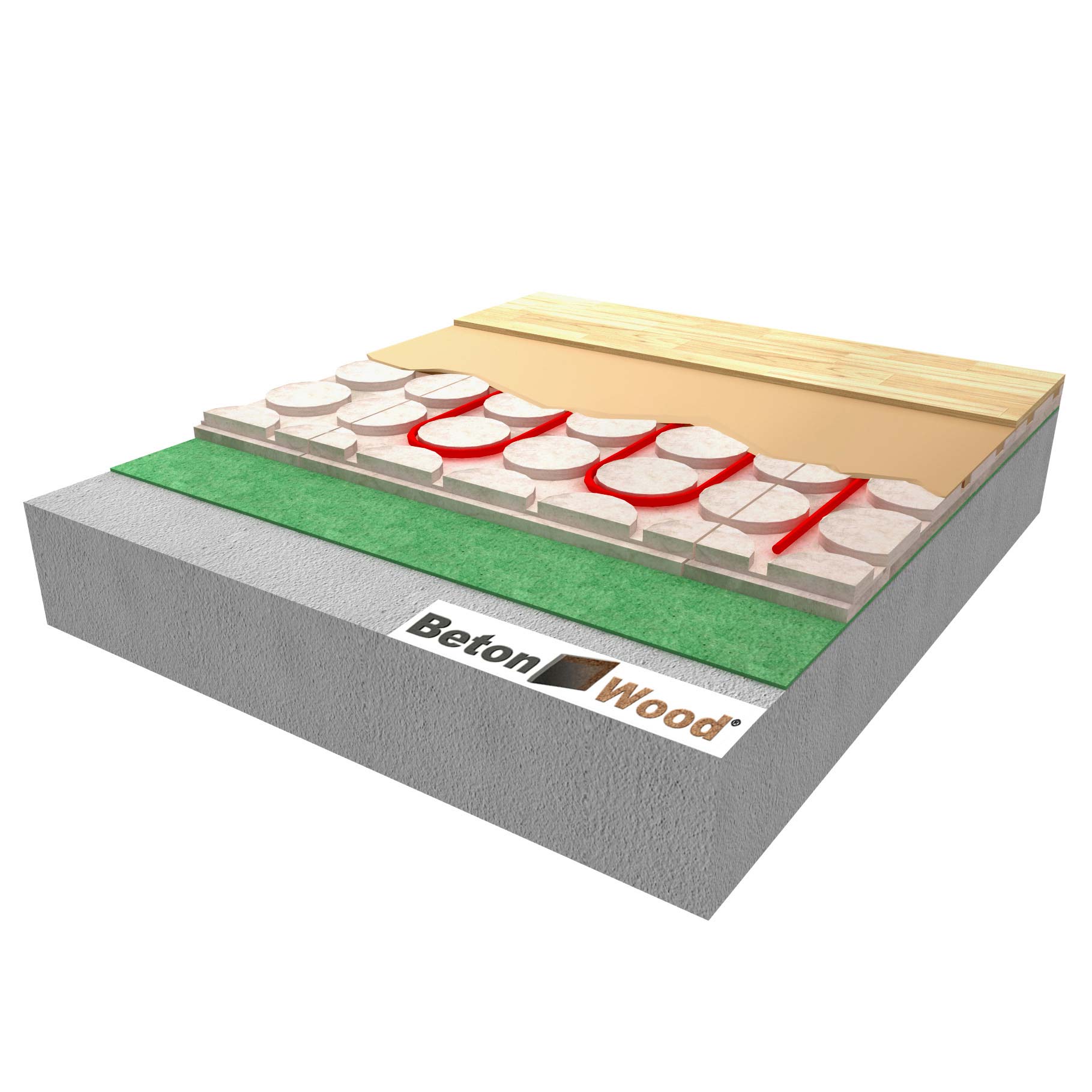

Radiant floor with fiber wood thin mat and cement bonded particle board
10. Radiant floor with fiber wood thin mat and cement bonded particle board

Radiant floor complete system with thermal insulation. Radiant floor is composed with a thin layer of high compression resistance fiber wood FiberTherm Underfloor and with high density 250kg/m³ on the base substrate, above this mat is installed the radiant system BetonRadiant in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. For the laying of the floor surface finish it must be casting a self-leveling compound on the radiating system.


  Download the Data sheet
  Download the Specification

See photo gallery 44

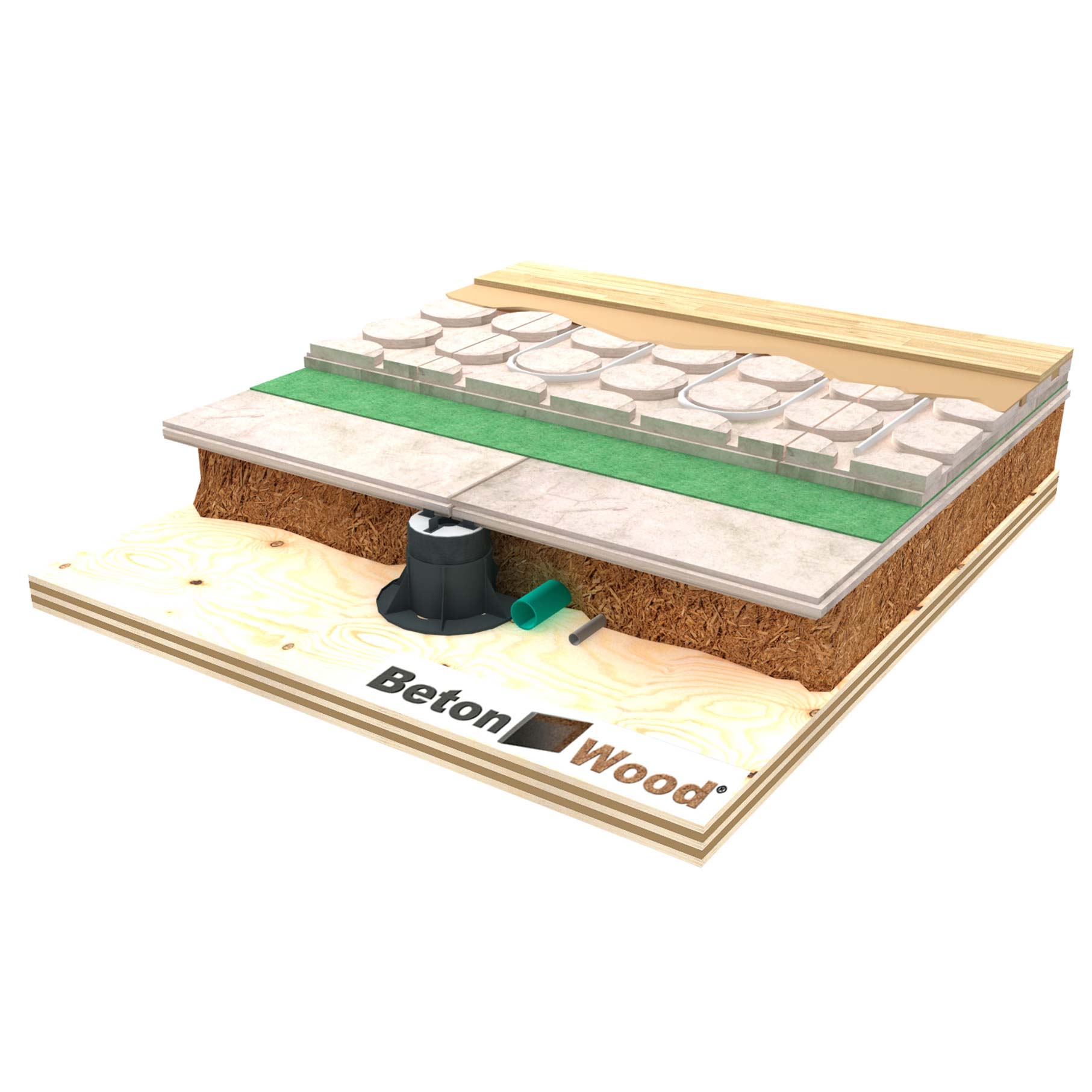

Elevated radiant floor with loose fiber wood and BetonWood
20a. Elevated radiant floor with loose fiber wood and BetonWood

Elevated radiant floor complete system with internal insulating loose fiber wood. The elevated floor is composed with adjustable hight support which sustain a layer of cement bonded particle boards with tongue&groove profile and with a density 1350kg/m³, a layer of FiberTherm Underfloor fiber wood with 250kg/m³ density, and the radiant flooring system BetonRadiant. The elevated system is filled with loose fiber wood Zell to insulate.


  Download the Data sheet
  Download the Specification

See photo gallery 48




Fiber wood panels for flooring system and dry screeds

Flexible fiber wood Flex50
Flexible fiber wood Flex 50

Flexible fiber wood panels density 50 Kg/m³. Flexible fiber wood panel for thermal and acoustic insulation of every parts of the building.

from 2,25 €/m²

Go to page
Flexible fiber wood Flex60
Flexible fiber wood Flex 60

Flexible fiber wood panels density 60 Kg/m³. Flexible fiber wood panel with high insulating power, with a very low thermal conductivity equal to 0,036 W/mk.

from 4,27 €/m²

Go to page
Fiber wood Soundstrip
Fiber wood Soundstrip

Flexible fiber wood strip density 60 Kg/m³. Flexible fiber wood strip for thermal insulation in flooring systems.

from 1,15 €/ml

Go to page
Fiber wood Roof dry
Fiber wood Roof dry

Fiber wood panels Roof dry density 140 Kg/m³. Thermal and acoustic insulation panels ideal to be installed in roofs, attics and screeds.

from 4,93 €/m²

Go to page
Fiber wood Therm
Fiber wood Therm

Fiber wood panels Therm density 160 Kg/m³. Thermal and acoustic insulation rigid panels ideal to be installed in dry screeds, walls, roofs, attics.

from 5,60 €/m²

Go to page
Fiber wood Therm SD
Fiber wood Therm SD

Fiber wood panels Therm SD density 160 Kg/m³. Thermal and acoustic insulation rigid panels ideal to be installed in dry screeds, walls, roofs, attics.

from 4,53 €/m²

Go to page
Fiber wood Floor
Fiber wood Floor

Fiber wood panels Floor density 160 Kg/m³. Thermal and acoustic insulation flooring system with tongue&groove fiber wood panels.

from 10,51 €/m²

Go to page
Fiber wood Isorel
Fiber wood Isorel

Fiber wood panels Isorel density 230 Kg/m³. Rigid fiber wood panel with reduced thicknesses for walls, screeds, roofs and attics.

from 1,63 €/m²

Go to page
Bituminous fiber wood BitumFiber
Bituminous fiber wood BitumFiber

Bituminous fiber wood panels Bitumfiber density 280 Kg/m³. Panels in bituminous fiber wood with high compressive strength and ideal for the construction of floors and floors.

from 2,78 €/m²

Go to page
Fiber wood Base
Fiber wood Base

Fiber wood panels Base density 250 Kg/m³. Thermal insulation panel with high compressive strength, ideal for floors that can be walked on.

from 5,16 €/m²

Go to page
Fiber wood Underfloor
Fiber wood Underfloor

Fiber wood panels Underfloor density 250 Kg/m³. Sub-layer mat with high compressive strength ideal for parquet or laminate floors that can be walked on.

from 0,81 €/m²

Go to page
Cellulose flakes Floc
Cellulose flakes Floc

Cellulose flakes for filling of walls, roofs, attics and floors cavietes. Cellulose flakes which fills all the empty spaces in the structural elements.

from 0,90 €/kg

Go to page
Loose fiber wood Zell
Loose fiber wood Zell

Loose fiber wood for filling of walls, roofs, attics and floors cavietes. Pure ecological fiber woods which fills all the empty spaces in the structural elements.

from 1,07 €/kg

Go to page
