Fiber wood shop Floor density 160kg/m³

Fiber wood shop FiberTherm Floor density 160kg/m³

Fiber wood panels density 160 Kg/m³.
Fibertherm Floor 160 is a system of interlocking wooden panels with heavy supports for the soundproofing of floors. The insulation system is excellent for reducing the sound impact in wooden floors.

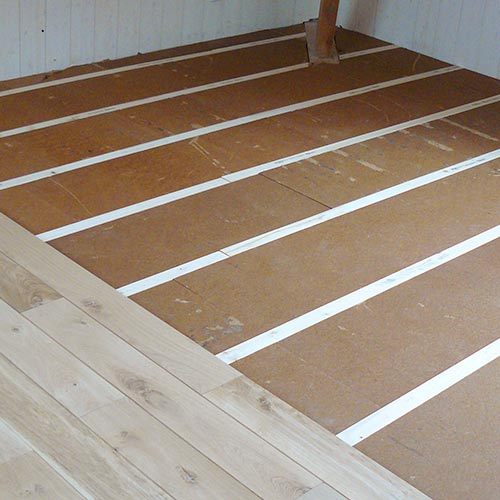

The fiber wood insulation system FiberTherm Floor 160 is excellent to break down the sound impact in wooden floors. Soundproof wooden strips are installed for the passage of the floor boards.

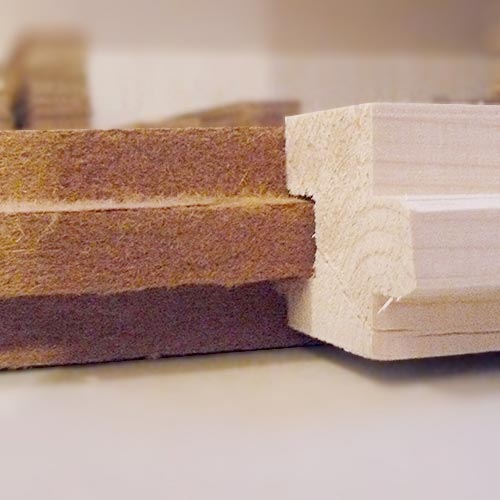

The fiber wood insulating panels FiberTherm Floor 160 are available with tongue and groove profile that fits with special battens of wood for fixing the floor. Density equal to 160 Kg/m³.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).

The fiber wood insulating panel FiberTherm Floor 160 has the following characteristics:

• Insulation flooring system with the installation of soundproof battens for fixing the floor boards;
• excellent sound insulation and sound improvement;
• excellent thermal insulation properties;
• high thermal absorption capacity which contributes to a balanced environmental climate;
• recyclable, ecologic, environment-friendly;
• building material tested and authorized according to current European standards.

Available sizes

panels with tongue&groove profile
Thickness Size mm Real surface mm kg/m² Pan./pallet m²/pallet kg/pallet
40 mm 1200 x 380 1186 x 366 6,40 84 38,3 approx.260
60 mm 1200 x 380 1186 x 366 9,60 57 27,0 approx.260

Available sizes

junction battens between panels
Thickness Width mm Lenght mm Pieces/pallet kg/m² Pieces/m²
35 mm 50 2000 45 approx. 2 1,3
55 mm 50 2000 31 approx. 3 1,3

Technical characteristics

Characteristics Values
Density kg/m³ 160
Fire reaction according to EN 13501-1 E
Coefficient of thermal conductivity λD W/(m∗K) 0,038
Specific heat J/(kg∗K) 2.100
Resistance to vapor diffusion μ 5
sd value (m) 0,2 (40) / 0,3 (60)
Thermal resistance RD (m²·K)/W 1,05 (40) / 1,55 (60)
Compressive strenght (kPa) 50
Compression stress
for 10% distortion (N/mm²)
Tensile strenght (kPa) ≥2,5
Specific resistance to airflow [(kPa·s)m²] ≥100
Panels identification WF-EN 13171-T4-CS(10/Y)50
- TR2,5 - AF100
Waste code (EAK) 030105/170201

Solutions with fiber wood Floor

Fiber wood dry screed Floor
Fiber wood dry screed FiberTherm Floor

Fiber wood dry system FiberTherm Floor, fiber wood thin mat FiberTherm Underfloor and cement bonded particle boards BetonWood with high acoustic insulation power.
