Fiber wood Universal density 270kg/m³

Fiber wood FiberTherm Universal density 270kg/m³

Fiber wood panels with density 270 Kg/m³.
Fibertherm Universal in fiber wood it is a high density thermal and acoustic insulation for roofs, attics and dry floors. Ideal for insulation in wooden buildings, but also in renovations and new traditional buildings.

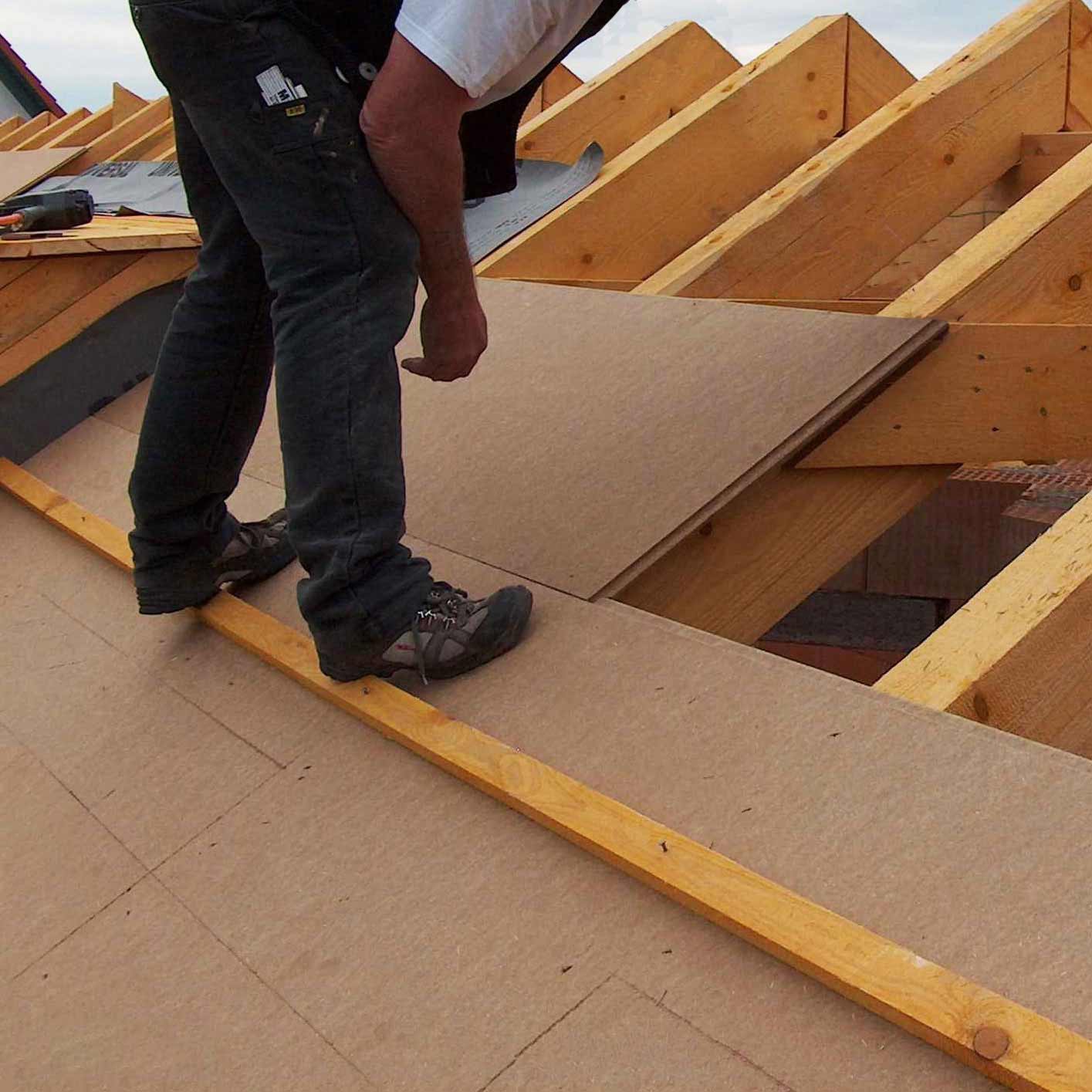

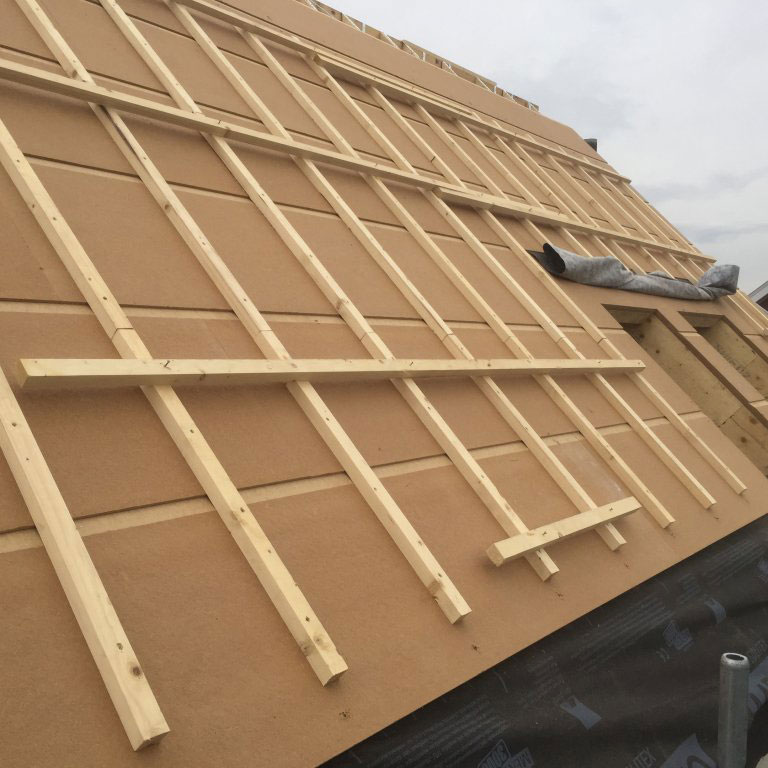

The fiber wood panel FiberTherm Universal 270 is a thermo-acoustic insulation fixed under the surface finishing layer for roofs and walls. It possesses the ability to increase the insulating power of wooden elements.

The fiber wood panels FiberTherm Universal dry are particularly stable and light, they are produced by wet process. Available with tongue and groove or sharp edge profile. These panels have an high density equal to 270 kg/m³.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).


With fiber wood FiberTherm Universal 270 is possible to obtain a thermo-acoustic insulation of the roof and walls to contribute considerably to the improvement of the quality of life within their own walls of the house. With FiberTherm Universal 270 excellent thermal insulation of the solid wood structural elements is obtained. Thanks to the low thermal conductivity and the high thermal resistance, FiberTherm Universal 270 protects your environment also from summer heat and winter frost. The density, about 270 kg/m³ and the high specific heat capacity, 2100 J/kgK (more than double the mineral wool), prevent heat from entering even during the hottest days. In this way you can enjoy a pleasant sleep, even under the roof.


The fiber wood panel FiberTherm Universal 270 has the following characteristics:

• high resistance to pressure, impact sound in the support area;
• excellent insulation characteristics and high protection from heat in summer;
• reduces structural thermal bridges;
• particularly open to diffusion, suitable for insulated roofs without crawl space;
• rainproof thanks to the special fold for ground slopes ≥18°;
• suitable as an emergency roof even for four weeks;
• effective protection against wind, dust, humidity and noise;
• air conditioning function thanks to the high absorption capacity;
• completely hydrophobic, no post-treatment of cutting edges;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.

Available sizes

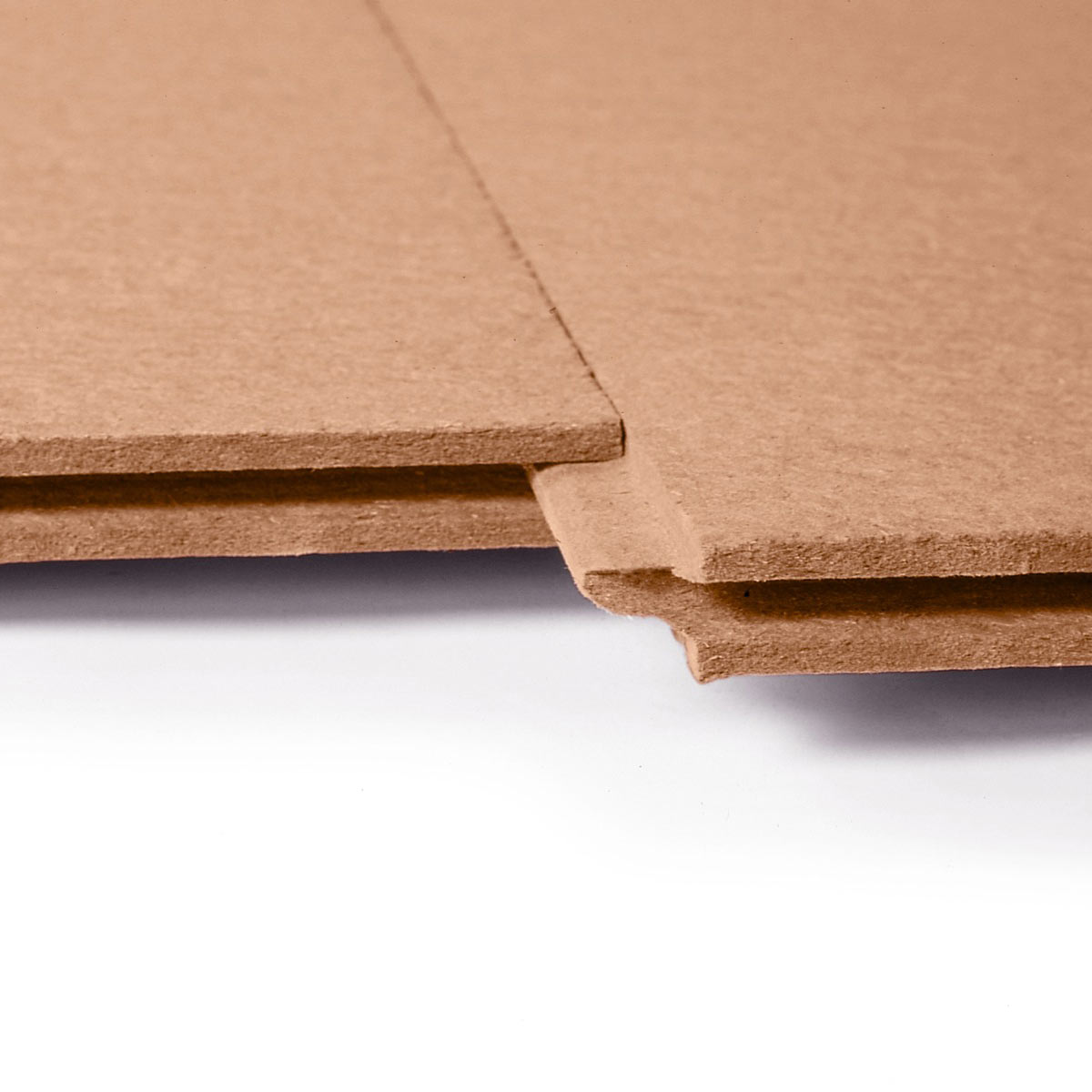

fiber wood panels with tongue&groove profile
Thickness Size mm Real surface mm kg/m² Pan./pallet m²/pallet kg/pallet
22 mm 2500 x 600 2480 x 585 5,83 104 150,9 approx.1020
24 mm 2500 x 600 2480 x 585 6,36 98 140,1 approx.1020
35 mm 2500 x 600 2480 x 575 9,28 66 93,9 approx.1010
52 mm 2500 x 600 2480 x 575 13,78 44 62,6 ca.1000
60 mm 2500 x 600 2480 x 575 16,20 28 54,1 approx.1000
35 mm 2800 x 1250 2775 x 1225 9,28 33 112,2 approx.1130


Available sizes

fiber wood panels with sharp edges
Thickness Size mm kg/m² Pan./pallet m²/pallet kg/pallet
35 mm 2800 x 1250 9,28 33 115,5 approx.1130


Technical characteristics

Characteristics Values
Density kg/m³ 270
Reaction to fire according to the standard EN 13501-1 E
Coefficient of thermal conductivity λD W/(m·K) 0,048
Specific heat capacity J/(kg·K) 2.100
Resistance to vapor diffusion μ 5
sd value (m) 0,11(22)/ 0,12(24) /0,18(35)
0,26(52)/ 0,30(60)
Thermal resistance RD (m²·K)/W 0,45(22)/ 0,50(24) /0,70(35)
1,05(52)/ 1,25(60)
Compression stress
at 10% distorsion (N/mm²)
0,20
Compression resistance (kPa) 200
Tensile resistance (kPa) ≥30
Short term
water absorbing (kg/m²)
≤1,0
Panels identification WF-EN13171-T5-DS(70,-)2-
CS(10/Y)200-TR30-WS1,0-AF100;
EN622-4-SB.H-E1
Waste code (EAK) 030105/170201


Solutions with Fiber wood Universal

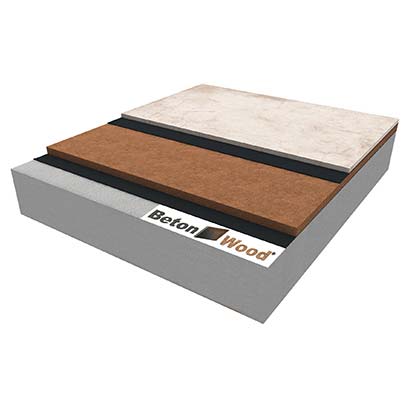

Dry screed with fiber wood insulation Fibertherm Universal dry
Dry screed with fiber wood Universal

Flooring system using fiber wood panels with high density and excellent compression resistance Fibertherm Universal and cement bonded particle boards BetonWood.

SEE MORE

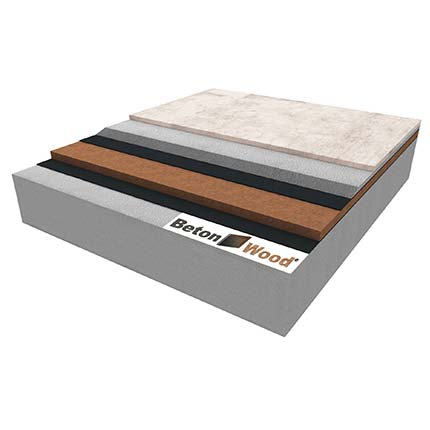

Fiber wood Fibertherm Universal under concrete screed
Fiber wood Universal and concrete screed

Flooring system using fiber wood panels Fibertherm Universal with high density and high thermal insulation, concrete constructional work and cement bonded particle boards BetonWood.

SEE MORE
Screed with fiber wood Fibertherm Universal on corrugated metal sheet
Screed with fiber wood on corrugated sheet

Screed system on corrugated metal sheet with high density and high compression resistance fiber wood Fibertherm Universal and a double layer of cement bonded particle boards BetonWood.

SEE MORE
Ventilated roof with fiber wood Universal and cement bonded particle boards on matchboarding
Ventilated roof with fiber wood Universal and BetonWood on matchboarding

Ventilated roof system with Aercoppi and high density fiber wood FiberTherm Universal and cement bonded particle boards with excellent thermal insulation power on matchboarding.

SEE MORE
Ventilated roof with fiber wood Isorel and Universal on matchboarding
Ventilated roof with fiber wood Isorel and Universal on matchboarding

Ventilated roof system with Aercoppi and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power on matchboarding.

SEE MORE
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on matchboarding
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on matchboarding

High thermal displacement ventilated roof system with Aercoppi and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power and cement bonded particle boards on matchboarding.

SEE MORE
Ventilated roof with fiber wood Universal and cement bonded particle boards on matchboarding
Ventilated roof with fiber wood Universal and BetonWood on matchboarding

Ventilated roof system with high density and excellent thermal insulating fiber wood FiberTherm Universal and cement bonded particle boards on matchboarding.

SEE MORE
Ventilated roof with fiber wood Isorel and Universal on matchboarding
Ventilated roof with fiber wood Isorel and Universal on matchboarding

Ventilated roof system with high density and excellent thermal insulating fiber wood FiberTherm Isorel, Universal on matchboarding.

SEE MORE
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on matchboarding
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on matchboarding

High thermal displacement ventilated roof system with wood beams and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power and cement bonded particle boards on matchboarding.

SEE MORE
Ventilated roof with fiber wood Universal and cement bonded particle boards on concrete
Ventilated roof with fiber wood Universal and BetonWood on concrete

Ventilated roof system with Aercoppi and high density fiber wood FiberTherm Universal and cement bonded particle boards with excellent thermal insulation power on concrete support.

SEE MORE
Ventilated roof with fiber wood Isorel and Universal on concrete
Ventilated roof with fiber wood Isorel and Universal on concrete

Ventilated roof system with Aercoppi and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power on concrete support.

SEE MORE
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on concrete
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on concrete

High thermal displacement ventilated roof system with Aercoppi and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power and cement bonded particle boards on concrete support.

SEE MORE
Ventilated roof with fiber wood Universal and cement bonded particle boards on concrete
Ventilated roof with fiber wood Universal and BetonWood on concrete

Ventilated roof system with high density and excellent thermal insulating fiber wood FiberTherm Universal and cement bonded particle boards on concrete support.

SEE MORE
Ventilated roof with fiber wood Isorel and Universal on concrete
Ventilated roof with fiber wood Isorel and Universal on concrete

Ventilated roof system with high density and excellent thermal insulating fiber wood FiberTherm Isorel, Universal on concrete support.

SEE MORE
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on concrete
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on concrete

High thermal displacement ventilated roof system with wood beams and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power and cement bonded particle boards on concrete support.

SEE MORE
Ventilated roof with fiber wood Universal and cement bonded particle boards on terracotta tiles
Ventilated roof with fiber wood Universal and BetonWood on terracotta tiles

Ventilated roof system with Aercoppi and high density fiber wood FiberTherm Universal and cement bonded particle boards with excellent thermal insulation power on terracotta tiles.

SEE MORE
Ventilated roof with fiber wood Isorel and Universal on terracotta tiles
Ventilated roof with fiber wood Isorel and Universal on terracotta tiles

Ventilated roof system with Aercoppi and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power on terracotta tiles.

SEE MORE
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on terracotta tiles
Ventilated roof with fiber wood Isorel, Universal and cement bonded particle boards on terracotta tiles

High thermal displacement ventilated roof system with wood beams and high density fiber wood FiberTherm Isorel, Universal with excellent thermal insulation power and cement bonded particle boards on terracotta tiles.

SEE MORE
Insulating ceiling in fiber wood Therm
Insulating ceiling in fiber wood Therm

High insulating ceiling in fiber wood panels FiberTherm posato fixed in metal or wooden frame and covered with plasterboards.

SEE MORE
